| 300MM FRONTEND MANUFACTURING
Modernizing and Extending 300mm Frontend Manufacturing
Fabmatics enables semiconductor manufacturers to optimize, extend, and modernize their 300mm frontend operations.
Whether you need to close automation gaps, increase storage capacity, integrate new process areas, or extend the lifecycle of existing fab infrastructure, our solutions help you improve efficiency without disrupting production.
Trusted by Leading Fabs Worldwide
35+ Years Experience
Brownfield Specialist
One-Stop-Partner
Engineering Partnership
| INDUSTRY CHALLENGES
Challenges in 300mm Legacy Frontend Manufacturing
Today's 300mm frontend fabs operate at extremely high levels of automation. Yet even highly automated manufacturing environments face new challenges as production requirements evolve, capacity demands increase, and critical automation infrastructure ages.
Many 300mm fabs have been in operation for more than two decades. Expanding output, integrating new tools, modernizing legacy systems, or connecting additional production areas often requires automation concepts that go beyond the original fab design.
The challenge is no longer building automation from scratch. It is extending the capabilities of existing 300mm fabs while maintaining production continuity and protecting previous investments.
Aging Automation Infrastructure
Legacy AMHS and stocker systems from the early 300mm era are approaching end-of-life, facing reliability risks, integration barriers.
Capacity Expansion Without New Fabs
Increasing wafer output within constrained footprints requires intelligent storage and transport extensions beyond existing OHT.
Automation Gaps Beyond OHT
Areas not reached by overhead transport create manual bottlenecks that limit throughput and increase risk of wafer mishandling.
Evolving Production Requirements
Rapidly changing product mixes, new process flows and tool reconfigurations require automation concepts that can adapt without costly re-engineering of the core AMHS.
Manual Engineering Lot Handling
Engineering and priority lots handled manually introduce variability, contamination risk, and significant operator time overhead.
Lifecycle Extension Requirements
Extending the operating life of installed equipment demands retrofit-ready solutions that integrate with heterogeneous automation environments.
| OUR APPROACH
Closing Automation Gaps Others Leave Open
Fabmatics complements existing automation ecosystems with targeted solutions that address specific operational challenges.
Rather than replacing legacy AMHS infrastructures, we enable semiconductor manufacturers to extend, optimize and modernize their existing automation environments.
Whether introducing additional storage capacity, connecting isolated process areas, automating engineering workflows or modernizing legacy systems, Fabmatics closes the automation gaps that standard solutions do not address.
Our solutions operate as an extension layer around your existing automation ecosystem - not a replacement for it.
AMHS / OHT Infrastructure
▶ Legacy OHT transport systems
▶ Installed Stocker systems
▶ Existing tool sets and bay configurations
▶ Established AMHS software and MCS
▶ Legacy FOUP handling workflows
Targeted Automation Enhancements
✔ Close automation gaps beyond OHT coverage
✔ Add storage capacity where floor space is limited
✔ Extend lifecycle of installed automation equipment
✔ Retrofit legacy systems with modern interfaces
✔ Integrate with minimal disruption to production
✔ Support brownfield expansion projects
| USE CASES
Typical Modernization and Expansion Projects in 300mm Environments
Real automation challenges from operating 300mm frontend fabs, and how Fabmatics addresses them.
Automating Material Flow in Areas that cannot be connected to the OHT System
▶ Challenge
As 300mm frontend fabs expand, new tools, service areas or production zones are not always accessible from the existing OHT network. Extending the OHT infrastructure may be technically difficult, costly or simply not feasible due to layout constraints. As a result, FOUP transfers are often handled manually, creating additional process steps and reducing automation coverage.
▶ Solution
Fabmatics enables automated FOUP transport in areas beyond the reach of traditional OHT systems. Mobile robotics can be integrated into the existing AMHS environment to connect isolated tools, stockers and production areas without requiring major infrastructure modifications.
▶ Customer Value
- Close automation gaps in existing 300mm fabs
- Automate FOUP transport without OHT expansion
- Connect isolated tools and production areas
- Flexible support for future fab modifications
Fast and Automated Material Flow between existing and Newly Added Fab Areas
▶ Challenge
As 300mm fabs expand, new production areas are often located on different floors, in adjacent buildings, or in retrofit spaces that were not part of the original automation concept. Reliable and fast FOUP transport between these areas becomes essential, while manual transfers can create additional effort, time-consuming transport processes and interruptions.
▶ Solution

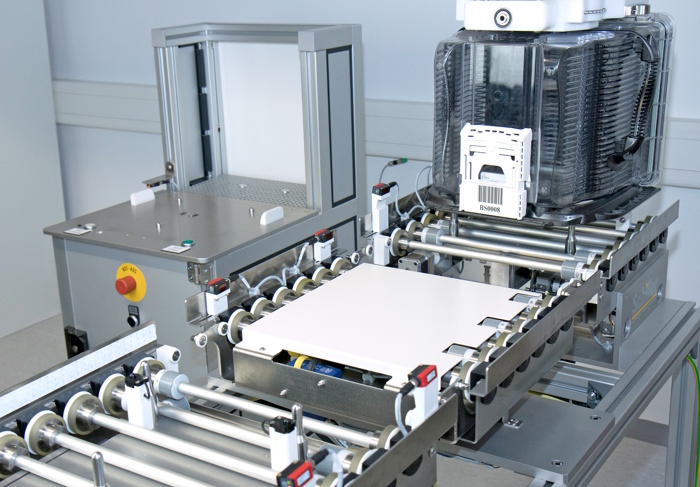

Fabmatics combines vertical lifts and conveyor systems to connect production areas across floors and buildings. The solution enables automated, fast FOUP transport between existing and newly added fab sections while integrating into the overall material flow concept.
▶ Customer Value
- Fast connection of existing and new production areas
- High-throughput FOUP transport across floors and buildings
- Reduced manual handling and transport effort
- Supports fab expansion and retrofit projects
- Seamless integration into existing material flows
Connect new production areas to your existing fab automation
Extending the Lifecycle of Stocker Systems in Legacy Fabs
▶ Challenge
Many 300mm fabs built during the first generation of frontend automation continue to operate with stockers that are more than 20 years old. Aging controls, worn mechanical components and limited OEM support increase operational risk and make long-term maintenance more challenging.
▶ Solution
Fabmatics provides retrofit concepts for legacy stockers ranging from control upgrades to complete modernization of mechanics and controls. Existing infrastructure can be preserved wherever possible while extending operational lifetime and maintaining compatibility with the surrounding automation environment.
▶ Customer Value
- Extend the lifecycle of existing stockers
- Replace obsolete controls and components
- Preserve existing infrastructure investments
- Reduce modernization effort compared to replacement
- Enable future upgrades and functionality extensions
Protecting Wafers during Storage between Process Steps
▶ Challenge
In advanced 300mm manufacturing, wafers often remain in FOUPs for extended periods before reaching the next process step. During storage, humidity, oxygen and airborne molecular contamination can affect sensitive wafers and create additional process challenges.
▶ Solution
Fabmatics integrates purge functionality directly into existing FOUP storage locations such as stockers, overhead buffers and storage racks. The retrofit can be implemented within existing storage concepts, enabling controlled storage conditions throughout the entire waiting period.
▶ Customer Value
- Retrofit purge capability into existing storage systems
- Protect wafers throughout interim storage
- Maintain storage capacity without additional footprint
- Individually monitor purge positions
- Support advanced process requirements
Providing Manual FOUP Access in Highly Automated Fabs
▶ Challenge
Even fully automated 300mm frontend fabs require manual access points for engineering lots, inspections, process qualifications or exceptional workflows. Without dedicated access stations, these activities can interrupt material flow and increase operational effort.
▶ Solution

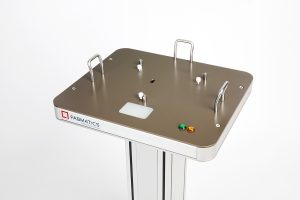

Fabmatics integrates Slim Load Ports into existing OHT environments, creating defined access points for special FOUP handling processes while maintaining compatibility with automated material flow.
▶ Customer Value
- Support engineering and qualification workflows
- Create controlled FOUP access points
- Integrate manual and automated processes
- Reduce disruption of standard production flows
- Improve handling efficiency for special lots
Creating Additional FOUP Storage Without Expanding the Facility
▶ Challenge
Increasing wafer output often requires additional storage capacity. However, available cleanroom space is limited and modifications must be implemented without disrupting production or redesigning the existing AMHS architecture.
▶ Solution
Fabmatics develops storage concepts tailored to the available space, material flow requirements and existing automation environment. Depending on the application, solutions can include linear stockers, high-density storage systems and space-efficient storage expansions.
▶ Customer Value
- Increase FOUP storage capacity
- Maximize utilization of available cleanroom space
- Integrate seamlessly into existing automation systems
- Support capacity expansion projects
- Maintain operational continuity during implementation
Automating Reticle Transport and Storage in Frontend Manufacturing
▶ Challenge
Lithography operations depend on the reliable availability of reticles. Manual reticle transport and storage processes can create inefficiencies, increase handling effort and limit visibility across the reticle supply chain.
▶ Solution

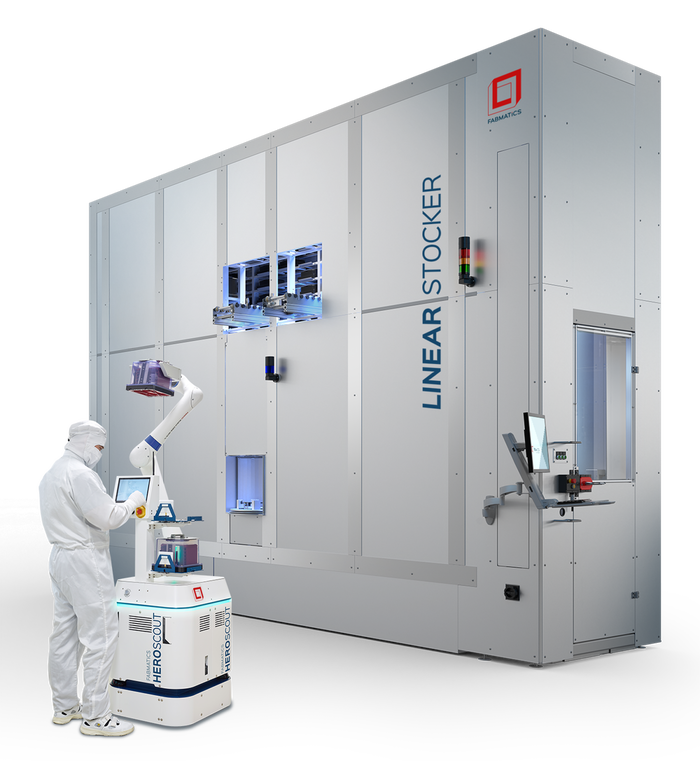

Fabmatics automates reticle logistics by combining automated transport and storage solutions. HERO Scout supports reticle transport between storage and lithography areas, while automated reticle stockers provide structured and scalable storage capacity.
▶ Customer Value
- Automate reticle transport workflows
- Improve reticle availability
- Enable structured reticle storage
- Reduce manual handling effort
- Support end-to-end reticle traceability
Reducing Risk in 300mm Automation Projects
▶ Challenge
Changes to transport, storage or handling processes can have a significant impact on material flow throughout a 300mm frontend fab. Decisions based solely on layout concepts often make it difficult to predict bottlenecks, capacity limits or operational constraints.
▶ Solution
Fabmatics uses simulation, material-flow analysis and digital twin applications to evaluate automation concepts before implementation. Different layouts, transport concepts, storage capacities and expansion scenarios can be assessed to support informed project decisions.
▶ Customer Value
- Identify bottlenecks early
- Compare alternative automation concepts
- Validate storage and transport capacities
- Reduce implementation risk
- Support fact-based investment decisions
| FEATURED PRODUCTS
Our Products for 300mm Semiconductor Manufacturing
Our product portfolio provides building blocks for closing automation gaps in 300mm semiconductor manufacturing.

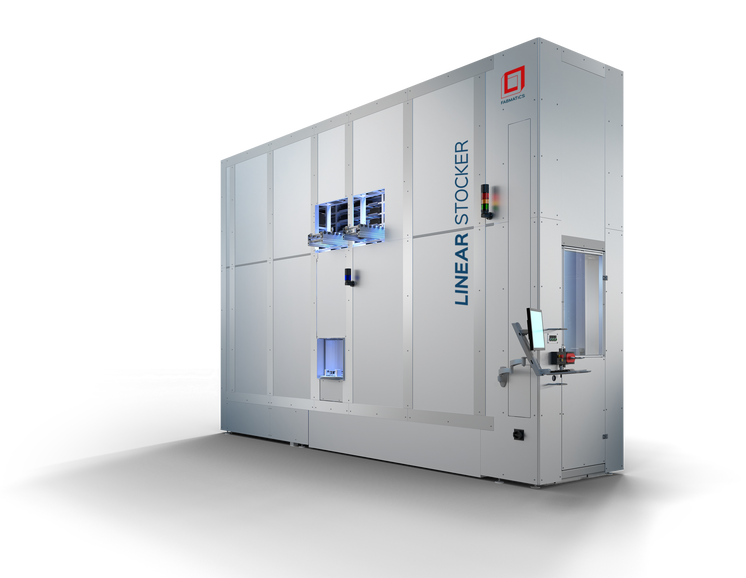

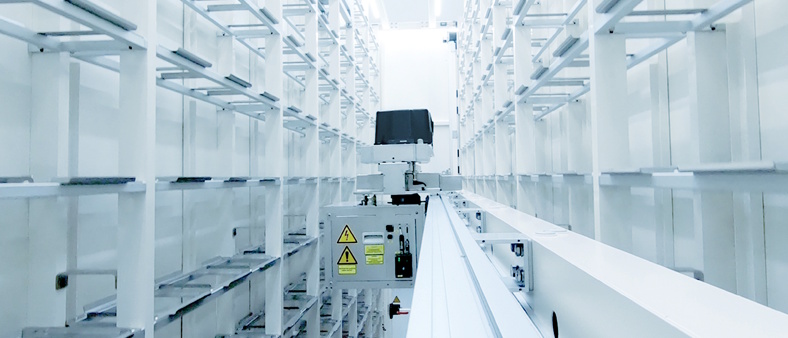

Linear Stocker
Compact and versatile storage solution for evolving 300mm material flow requirements. Ideal for space-constrained environments needing reliable automated FOUP storage including litho areas and sorter integration.

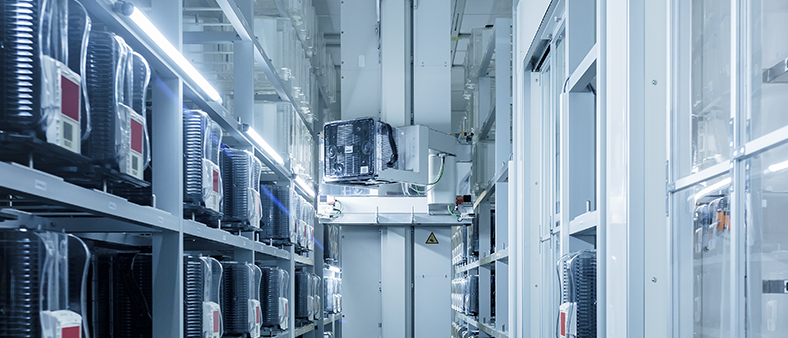

Max & Vario Stocker
Scalable high-capacity storage solutions for growing 300mm frontend fabs including litho areas and sorter integration. Vario Stockers provide flexible storage configurations for expansion projects, while MAX Stockers enable centralized, high-density FOUP storage for large wafer volumes and long-term storage applications.
OHT I/O-Stations
Space-optimized load port enabling engineering lot access at tools outside standard OHT reach. Minimal footprint integration.

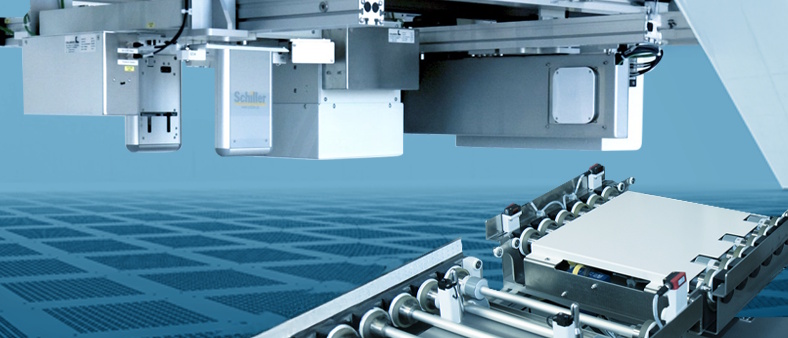

Conveyor, Hoists & Lifts
Flexible transport infrastructure for connecting tools, stockers, production areas and even entire buildings. Enables fast and automated material flow across floors and long distances.
HERO Scout
Mobile robot for automated reticle transport in advanced lithography environments. Supports efficient and traceable reticle logistics between storage and production areas.

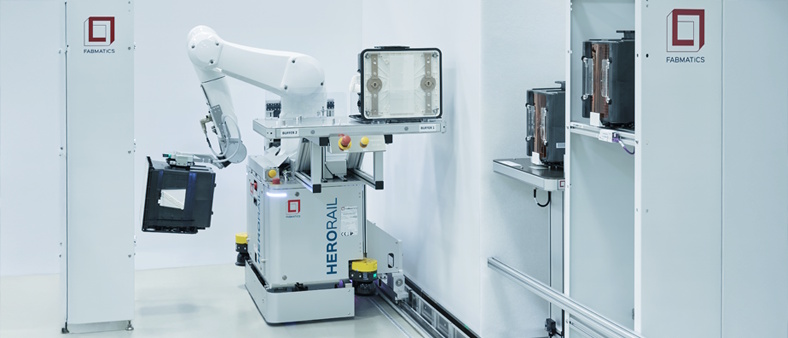

HERO Rail
Rail-guided transport system for reliable and automated FOUP movement along predefined routes. Ideal for high-throughput FOUP transport between process, storage and transfer areas.

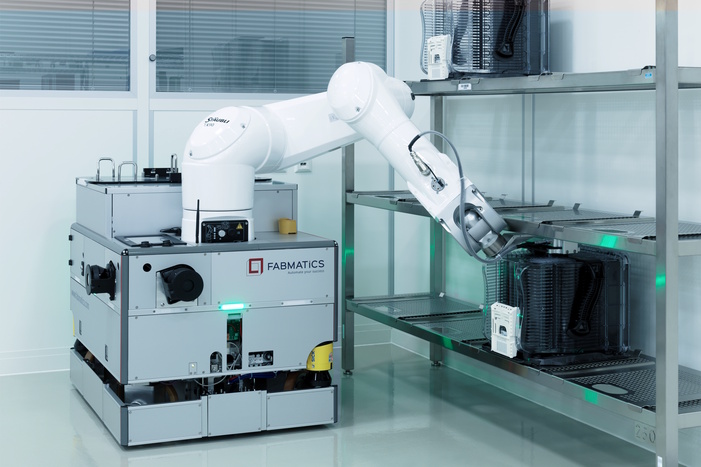

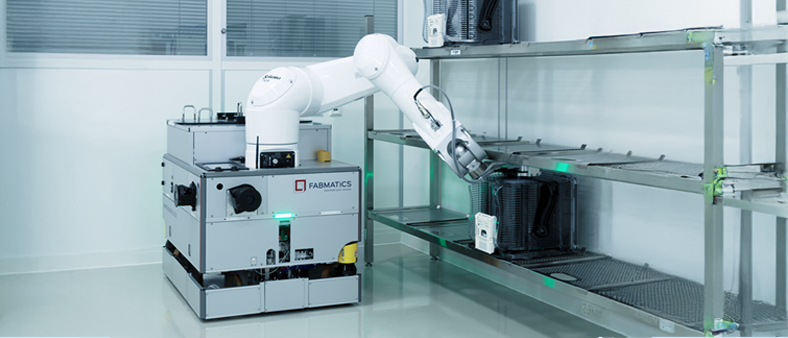

HERO Fab
Autonomous mobile robot for automated FOUP transport in 300mm frontend fabs. Ideal for closing automation gaps where OHT connectivity is not feasible or economically justified.
FOUP Purge Systems
Retrofittable purge solution for protecting wafers during interim storage. Integrates into existing stockers and storage systems without requiring additional footprint.

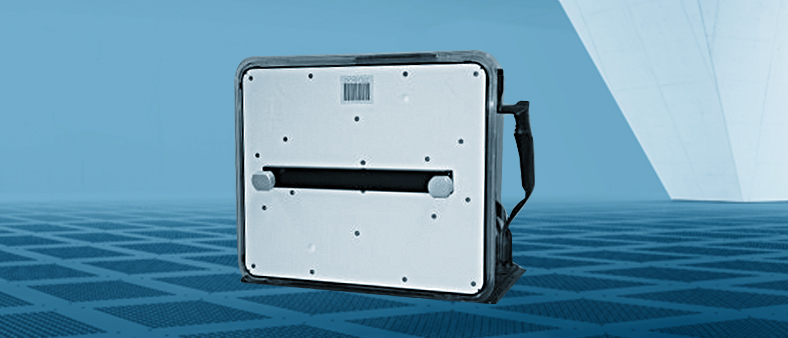

FOUP Opener
Engineering, qualification and service activities in 300mm frontend fabs occasionally require manual access to wafer carriers. The FOUP Opener enables safe and controlled opening and locking of 300mm FOUPs outside standard production equipment.
Automation System Modeling
Evaluate capacity expansion, new transport concepts and automation upgrades before implementation using analytical, simulation and digital twin models.
RFID Extension & Retrofit
Extend existing RFID infrastructures to newly added stockers, conveyors and automation areas. Seamlessly integrates FOUP identification and tracking into fab expansion and modernization projects.
Let's Discuss Your 300mm Project
Whether you are extending capacity, upgrading legacy infrastructure,
or connecting previously isolated production areas,
our automation experts are ready to help.
