Use space where it isn’t needed

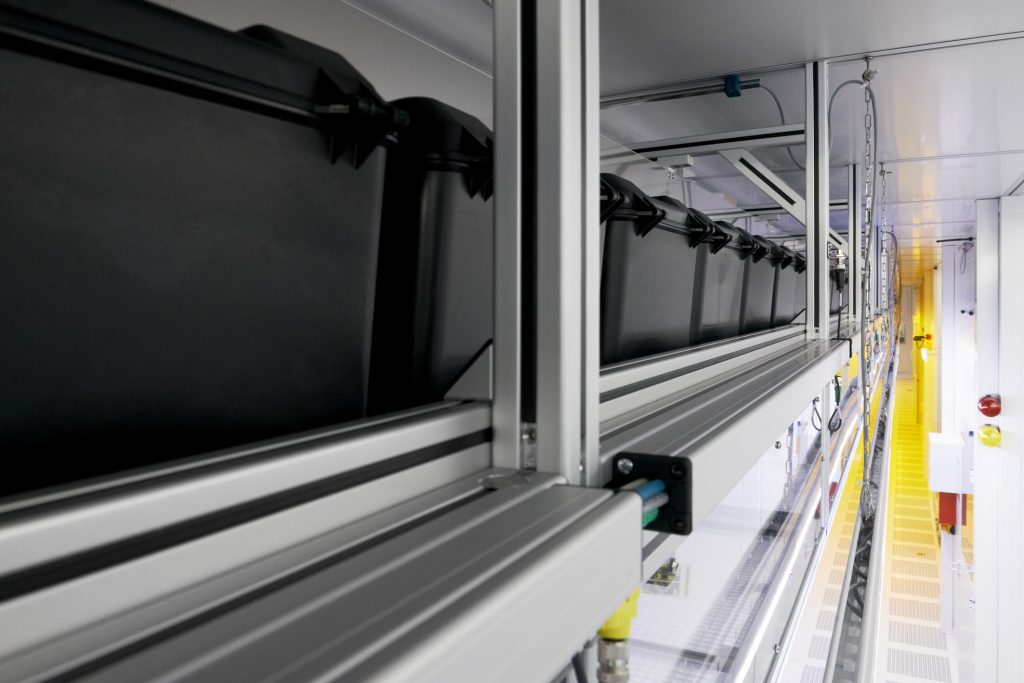

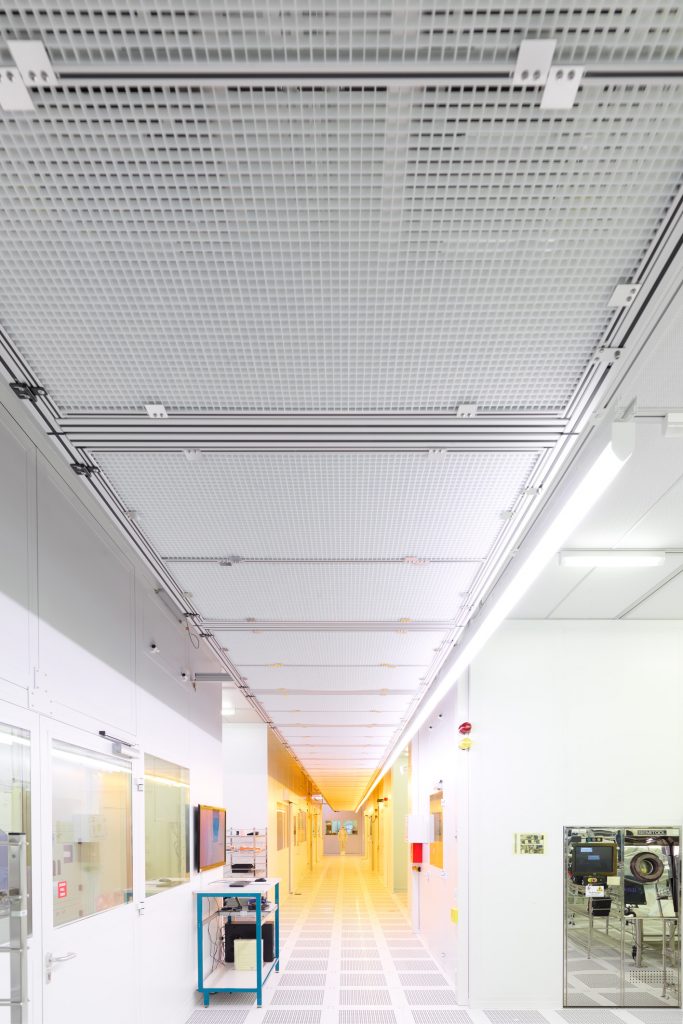

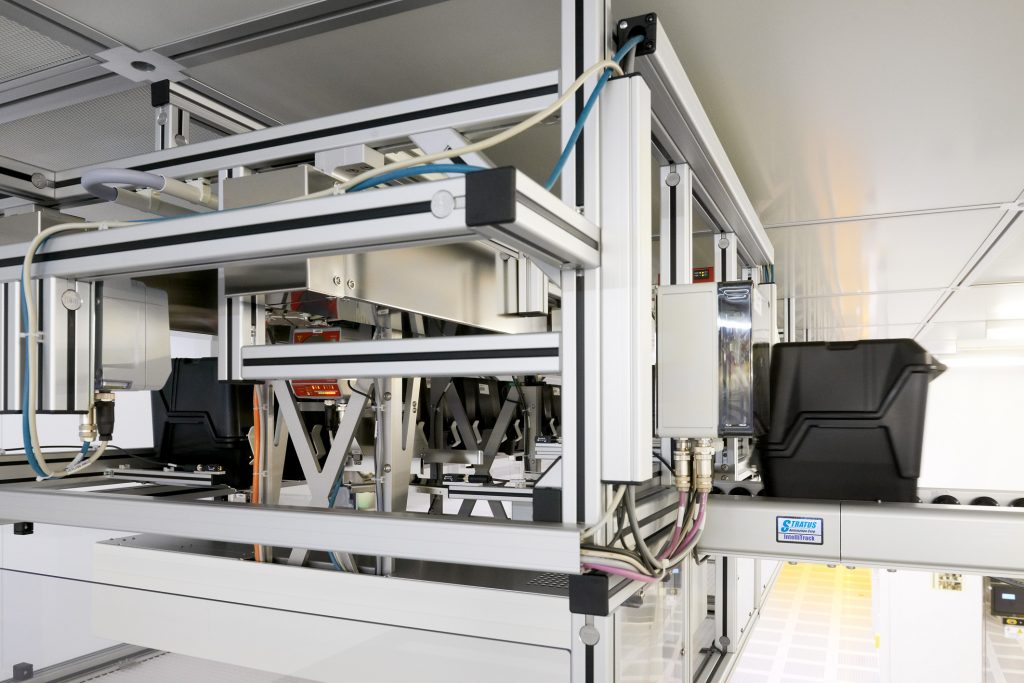

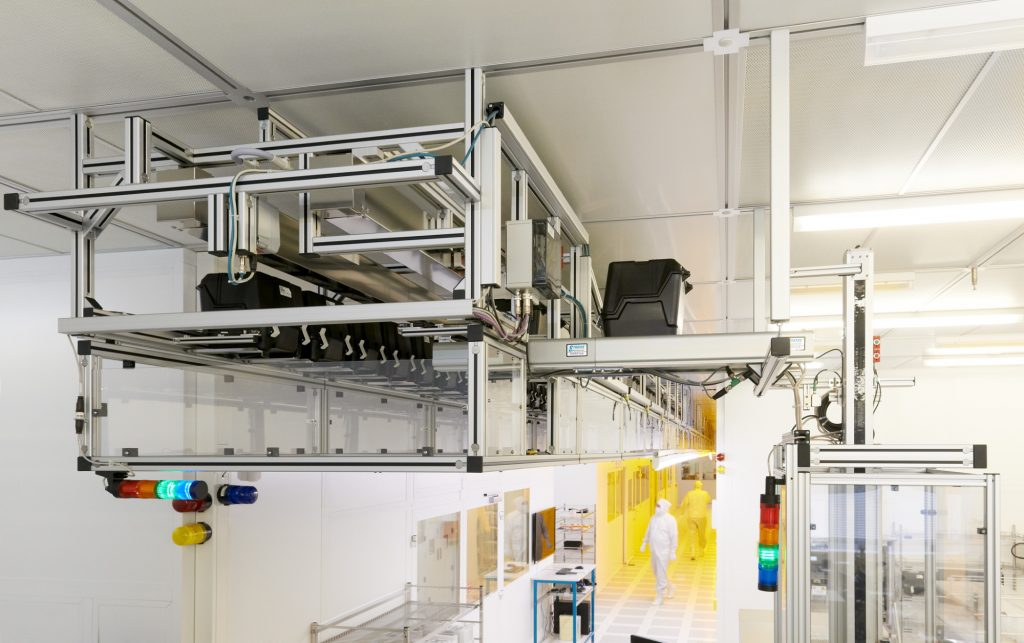

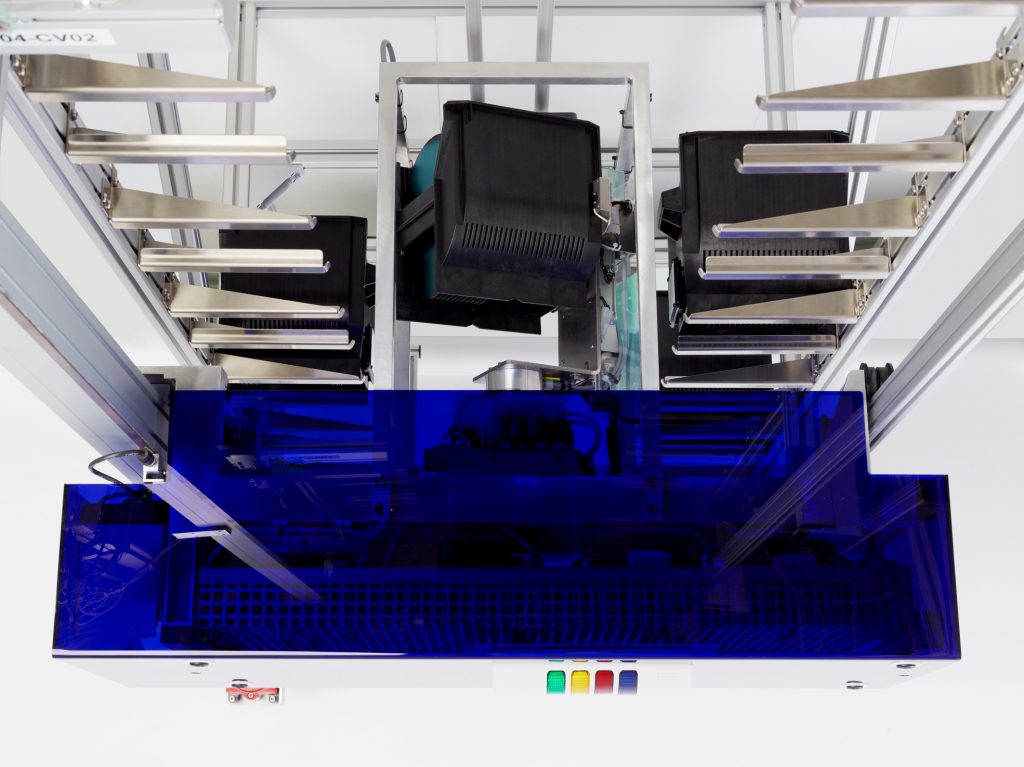

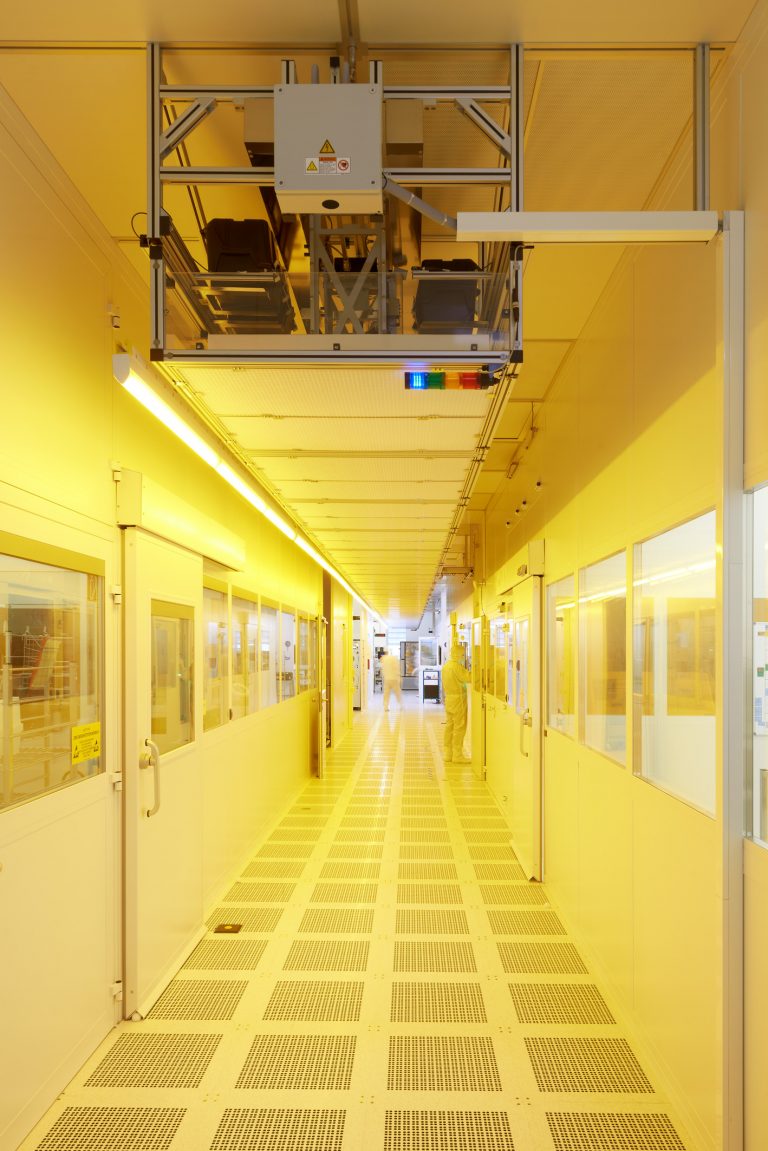

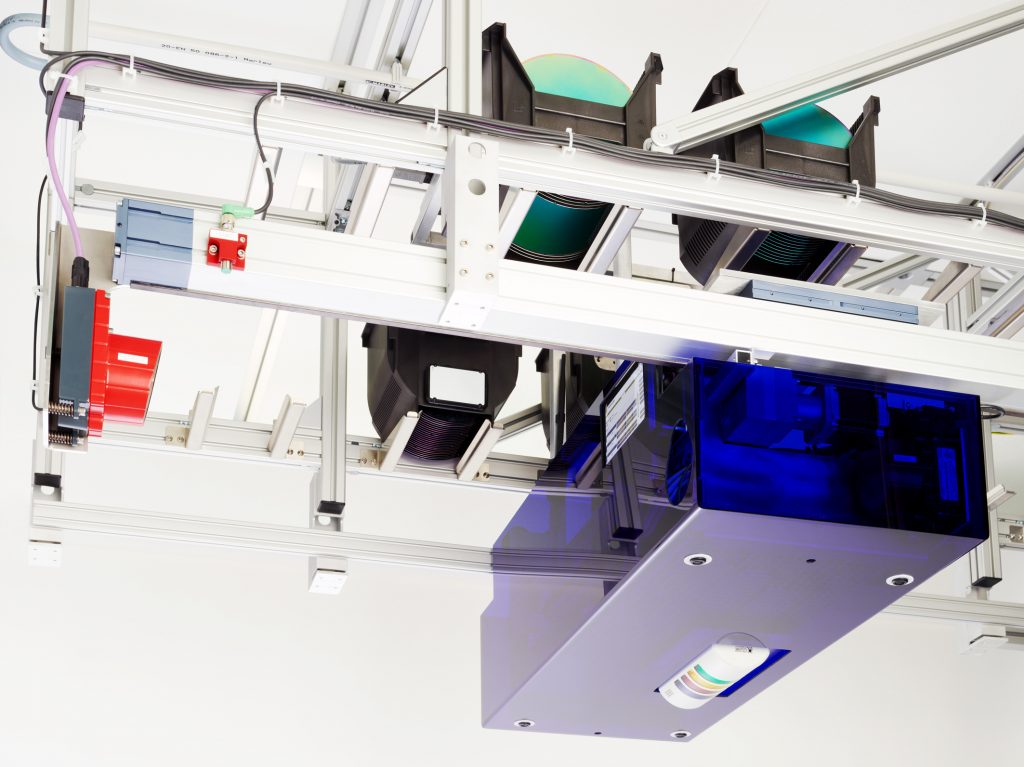

This innovative system is the ideal solution for the storage material carriers e.g. wafer cassettes and H200 boxes where floor space is limited and very valuable.  Without using costly clean room floor space, the FlatStocker hangs from the ceiling and can be designed to handle variety of cassette types. FlatStocker provides carrier id information, in real time, to the customer’s MCS (Material Control System) using RFID and barcode technology.

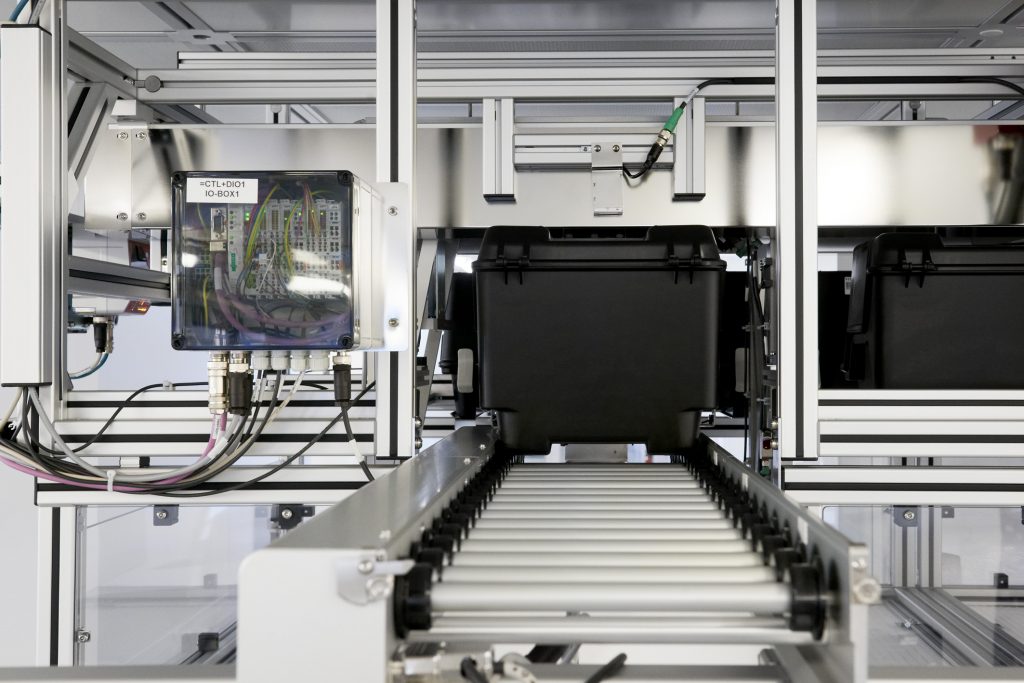

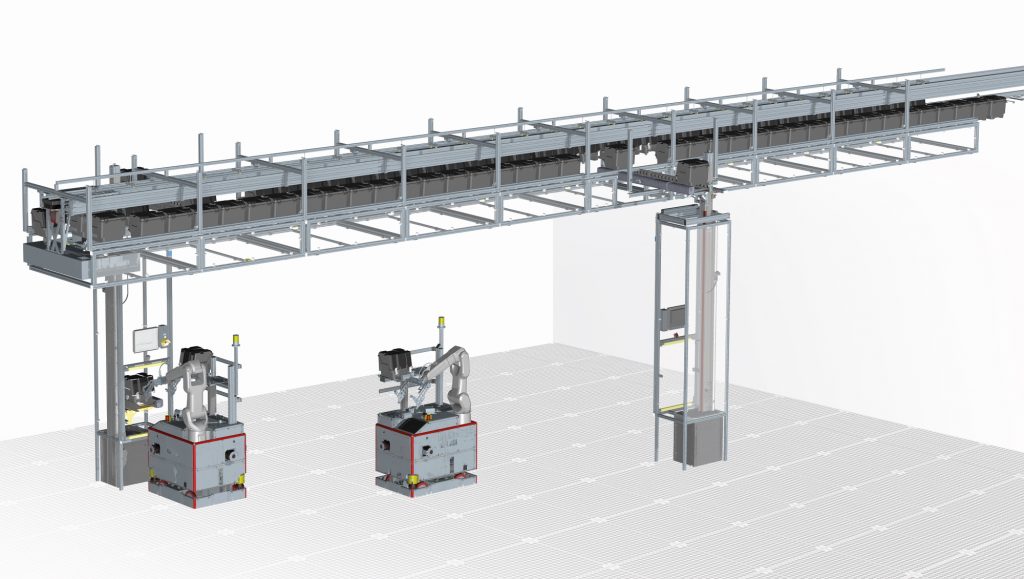

Connection to a transportation system like overhead transport carriers, a conveyor system or both, combined with vertical lifts, enables the system to quickly store or retrieve lots.

This simple design is based on proven industrial components. This enables great flexibility in laying out the most effective configurations to meet the customer’s storage requirements and available space.

Features:

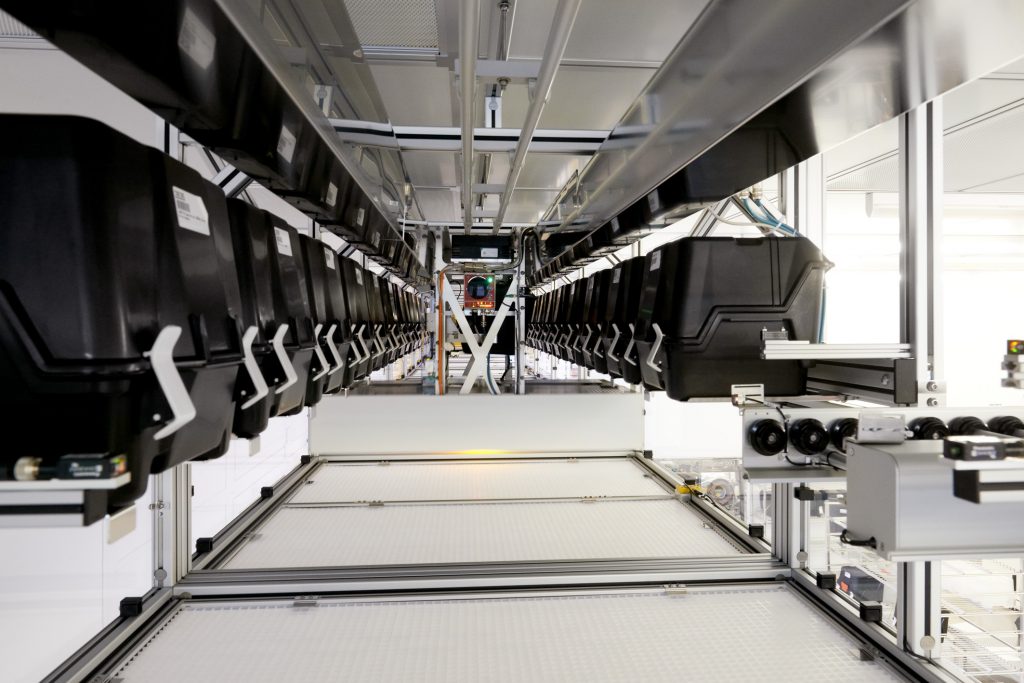

  • Storage of product carriers, e.g. wafer cassettes and H200 boxes below the cleanroom ceiling
  • RFID and barcode technology enables location tracing of lots in real time
  • Controller software compliant SECS GEM / SEMI E88 / SEMI E84 Interface for carrier transfer to other systems
  • Flexible design adjustment according to customer needs
  • Up to ISO 3 / US FED class 1
  • Operating speed 1.5 m/s in ISO 4 clean Rooms
